MMI problems and dead battery
12-14-2012, 08:39 AM
#11
Banned
As I look
at the original post by carterleeds, it appears that you have intermittent operation of your MMI, it may be a dieing MMI control head or a faulty connection some where in the system, can you save or print all of your scans, then replace all fuses and anything else you disconnected, next I would clear all codes and do a fresh full scan and post it here.
If you are comfortable looking into the most ring, I would check all connection, meaning you would have to pull the glove box assembly to check MMI CH and the CAN connections, also in your trunk along with the NAV are the AM-FM tuner box, sat tuner if equipped, TV tuner if equipped, etc. be sure to check all, and if you have a fiber test ring pictured below you can check each component one at a time and see if thee MMI stay in operation, say without the NAV.
If you are comfortable looking into the most ring, I would check all connection, meaning you would have to pull the glove box assembly to check MMI CH and the CAN connections, also in your trunk along with the NAV are the AM-FM tuner box, sat tuner if equipped, TV tuner if equipped, etc. be sure to check all, and if you have a fiber test ring pictured below you can check each component one at a time and see if thee MMI stay in operation, say without the NAV.
12-14-2012, 01:12 PM
#12
brozee i do apologise.
johnnyj the fibre optic ring tester, where can i get one from?
also i will be checking the fibre optic connections as suggested, so far i have checked the 2 fibre optic connectors in the boot which is connected to the silver box under the nav system (yellow and white connector) ive removed it and secured it back unto the box properly, i think the white plug was slightly loose, however still no luck.
johnnyj do i just unplug fibre connector and replug them and check for any loose ones?
i will remove glove box and check connections on mmi ecu (control head.)

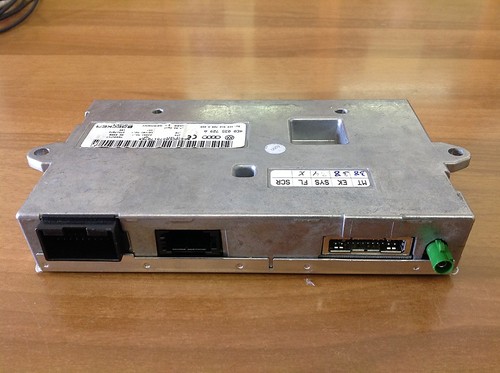

i can confirm i only have and can see nav and the silver box in the boot, and 6 disk cd player in glove box which i replaced 2 months ago and has been working fine even now, and will check connectors of nav which means removing as it is so tight in there and tbh with the cd player i unlpugged fibre optic and replugged it but still same.
all fuses seem ok in the boot tbh but dont actually know which ones to look for anywhere else.
will post scan.
johnnyj the fibre optic ring tester, where can i get one from?
also i will be checking the fibre optic connections as suggested, so far i have checked the 2 fibre optic connectors in the boot which is connected to the silver box under the nav system (yellow and white connector) ive removed it and secured it back unto the box properly, i think the white plug was slightly loose, however still no luck.
johnnyj do i just unplug fibre connector and replug them and check for any loose ones?
i will remove glove box and check connections on mmi ecu (control head.)
i can confirm i only have and can see nav and the silver box in the boot, and 6 disk cd player in glove box which i replaced 2 months ago and has been working fine even now, and will check connectors of nav which means removing as it is so tight in there and tbh with the cd player i unlpugged fibre optic and replugged it but still same.
all fuses seem ok in the boot tbh but dont actually know which ones to look for anywhere else.
will post scan.
12-14-2012, 01:15 PM
#13
Address 01: Engine Labels: 077-910-560-BFM.lbl
Part No SW: 4E0 910 560 E HW: 4E0 907 560
Component: 4.2L V8/5V G 0040
Revision: 00000000 Serial number: AUX3Z0C0308622
Coding: 0011773
Shop #: WSC 00652 652 80630
VCID: 2341EBBF9B45
6 Faults Found:
17981 - Left Engine Mount Solenoid Valve (N144): Open Circuit
P1573 - 004 - No Signal/Communication
16420 - Oxygen (Lambda) Sensor B1 S2: Heating Circuit: Malfunction / Open Circuit
P0036 - 004 - No Signal/Communication - MIL ON
17983 - Right Engine Mount Solenoid Valve (N145): Short to Plus
P1575 - 001 - Upper Limit Exceeded
17522 - Oxygen (Lambda) Sensor; B1 S2: Internal Resistance too High
P1114 - 004 - No Signal/Communication - MIL ON
18282 - Valve for Torque Support Mount: Short to Plus
P1874 - 001 - Upper Limit Exceeded
18010 - Power Supply Terminal 30: Voltage too Low
P1602 - 002 - Lower Limit Exceeded - Intermittent
Readiness: 0110 1101
-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 09E-927-156.lbl
Part No SW: 4E0 910 156 HW: 09E 927 156
Component: AG6 09E 4,2L5V RdW 0080
Coding: 0000001
Shop #: WSC 00000 000 00000
VCID: DFC9274F77AD
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes Labels: 4E0-910-517.lbl
Part No SW: 4E0 910 517 A HW: 4E0 614 517 E
Component: ESP 5.7 allrad H29 0420
Coding: 0008597
Shop #: WSC 02313 000 00000
VCID: 214DE1B78159
1 Fault Found:
01826 - Sensor for Steering Angle (G85); Supply Voltage Terminal 30
000 - - - Intermittent
-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. Labels: 4E0-910-131.lbl
Part No SW: 4E0 910 131 HW: 4E0 909 131 K
Component: FBS AUDID3 H10 0190
Revision: 01904910 Serial number: AUX3Z0C0308622
Coding: 0411648
Shop #: WSC 00586 210 00680
VCID: D8BB0C531283
Part No: XXXXXXXXXXX
Component: ELV XXXX
1 Fault Found:
00956 - Key 2
002 - Lower Limit Exceeded - Intermittent
Freeze Frame:
Fault Status: 00100010
Fault Priority: 4
Fault Frequency: 1
Reset counter: 162
Mileage: 122672 km
Time Indication: 0
Date: 2002.09.13
Time: 00:33:46
-------------------------------------------------------------------------------
Address 06: Seat Mem. Pass Labels: None
Part No SW: 4E0 910 760 C HW: 4E0 959 760
Component: Sitzmemory BFS H06 0030
Revision: 00000000 Serial number: 5DS 008 795-03
Coding: 4063232
Shop #: WSC 02313 785 00200
VCID: 2341EBBF9B45
No fault code found.
-------------------------------------------------------------------------------
Address 07: Control Head
Cannot be reached
-------------------------------------------------------------------------------
Address 08: Auto HVAC Labels: None
Part No SW: 4E0 910 043 HW: 4E0 820 043 A
Component: KLIMAAUTOMAT 015 0190
Revision: 00000013 Serial number: 00000000010616
Coding: 0348241
Shop #: WSC 02311 785 00200
VCID: DABF165B6C8F
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. Labels: None
VCID: 55A585678591
No Faults Found
or DTCs not supported by controller
or a communication error occurred
-------------------------------------------------------------------------------
Address 15: Airbags Labels: 4E0-910-655-84.lbl
Part No SW: 4E0 910 655 HW: 4E0 959 655
Component: Airbag 8.4E+ H08 0840
Coding: 0431707
Shop #: WSC 02313 785 00200
VCID: E3C12BBF5BC5
No fault code found.
-------------------------------------------------------------------------------
Address 16: Steering wheel Labels: 4E0-910-549.lbl
Part No SW: 4E0 910 549 HW: 4E0 953 549
Component: Lenksäulenmodul H08 0020
Coding: 0112141
Shop #: WSC 02311 785 00200
VCID: E5C535A755F1
Part No: XXXXXXXXXXX
Component: Lenkradmodul H02 0050
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments Labels: 4E0-910-xxx-17.lbl
Part No SW: 4E0 910 900 HW: 4E0 920 950 C
Component: KOMBIINSTR. VDO H40 0020
Revision: 992703 Serial number: AUDID3C1001216
Coding: 0000403
Shop #: WSC 00654 210 86418
VCID: DCB3104366BB
1 Fault Found:
00003 - Control Module
014 - Defective
Freeze Frame:
Fault Status: 00000011
Fault Priority: 6
Fault Frequency: 1
Reset counter: 108
Mileage: 233585 km
Time Indication: 0
Date: 2002.09.19
Time: 19:47:04
-------------------------------------------------------------------------------
Address 19: CAN Gateway Labels: 4E0-910-468.lbl
Part No SW: 4E0 910 468 HW: 4E0 907 468 A
Component: Gateway H06 0040
Revision: 06 Serial number: 000030312607B6
Coding: FCFE7FDD2B7504
Shop #: WSC 00000 128 00289
VCID: E5C535A755F1
No fault code found.
-------------------------------------------------------------------------------
Address 1E: Media Player 2 Labels: 4E0-910-111.lbl
Part No SW: 4E0 910 111 F HW: 4E0 035 111
Component: CD-Changer H43 0470
Revision: 00000501 Serial number: AUZ5ZBC1009521
Shop #: WSC 00000 000 00000
VCID: 1C33D043A63B
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer Labels: 4E0-910-131.lbl
Part No SW: 4E0 910 131 HW: 4E0 909 131 K
Component: FBS AUDID3 H10 0190
Revision: 01904910 Serial number: AUX3Z0C0308622
Coding: 0411648
Shop #: WSC 00586 210 00680
VCID: D8BB0C531283
Part No: XXXXXXXXXXX
Component: ELV XXXX
XXXXXXXXXXX ELV XXXX
1 Fault Found:
00956 - Key 2
002 - Lower Limit Exceeded - Intermittent
Freeze Frame:
Fault Status: 00100010
Fault Priority: 4
Fault Frequency: 1
Reset counter: 162
Mileage: 122672 km
Time Indication: 0
Date: 2002.09.13
Time: 00:33:46
-------------------------------------------------------------------------------
Address 28: HVAC, Rear Labels: None
Part No SW: 4E0 910 158 HW: 4E0 919 158 A
Component: KLIMA-STG. FOND 011 0160
Revision: 00000007 Serial number: 00000000004377
Coding: 0000000
Shop #: WSC 00000 000 00000
VCID: E1CD21B741D9
No fault code found.
-------------------------------------------------------------------------------
Address 34: Level Control Labels: 4E0-910-553.lbl
Part No SW: 4E0 910 553 C HW: 4E0 907 553 C
Component: LUFTFDR.-CDC H03 4190
Coding: 0015500
Shop #: WSC 00652 210 81339
VCID: 2341EBBF9B45
2 Faults Found:
00778 - Steering Angle Sensor (G85)
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 3
Fault Frequency: 3
Reset counter: 162
Mileage: 122680 km
Time Indication: 0
Date: 2002.09.13
Time: 00:41:10
01400 - Suspension Level Control
002 - Lower Limit Exceeded - Intermittent
Freeze Frame:
Fault Status: 00100010
Fault Priority: 2
Fault Frequency: 2
Mileage: 122680 km
Time Indication: 0
Date: 2002.09.13
Time: 00:06:17
-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr Labels: None
Part No SW: 4E0 910 760 C HW: 4E0 959 760
Component: Sitzmemory FS H06 0030
Revision: 00000000 Serial number: 5DS 008 795-03
Coding: 4063330
Shop #: WSC 00654 210 60455
VCID: 2341EBBF9B45
No fault code found.
-------------------------------------------------------------------------------
Address 37: Navigation Labels: 4E0-910-88x-37.lbl
Part No SW: 4E0 910 888 P HW: 4E0 919 887 C
Component: MNS ECE H43 1060
Revision: 00000000 Serial number: 305BK047556227
Shop #: WSC 02313 785 00200
VCID: 3B7133DF03F5
2 Faults Found:
02261 - Data Medium
014 - Defective - Intermittent
Freeze Frame:
Fault Status: 00101110
Fault Priority: 7
Fault Frequency: 4
Reset counter: 162
Mileage: 122680 km
Time Indication: 0
Date: 2002.09.13
Time: 02:49:08
Freeze Frame:
Hex Value: 0x3D81
Hex Value: 0x5852
Hex Value: 0x1900
Hex Value: 0x778E
02927 - DVD Read Error
000 - - - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 6
Fault Frequency: 2
Reset counter: 162
Mileage: 122680 km
Time Indication: 0
Date: 2002.09.13
Time: 03:51:34
Freeze Frame:
Hex Value: 0x3D81
Hex Value: 0x6100
Hex Value: 0x0401
Hex Value: 0x0000
-------------------------------------------------------------------------------
Address 38: Roof Electronics Labels: 4E0-910-135.lbl
Part No SW: 4E0 910 135 A HW: 4E0 907 135 A
Component: Dachknoten D3 H01 0070
Serial number: 00000302200008
Coding: 0036500
Shop #: WSC 02313 785 00200
VCID: 1D35DD47BD21
No fault code found.
-------------------------------------------------------------------------------
Address 42: Door Elect, Driver Labels: None
Part No SW: 4E1 910 802 HW: 4E2 959 802
Component: Türsteuer.FS BRM004 0080
Coding: 0028454
Shop #: WSC 02311 785 00200
VCID: DEB71A4B70A7
1 Fault Found:
02110 - Window Regulator Switch
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 3
Fault Frequency: 1
Reset counter: 162
Mileage: 122672 km
Time Indication: 0
Date: 2002.09.13
Time: 00:39:12
-------------------------------------------------------------------------------
Address 46: Central Conv. Labels: 4E0-910-289.lbl
Part No SW: 4E0 910 289 HW: 4E0 907 289
Component: Komfortgeraet H02 0050
Coding: 0004857
Shop #: WSC 02311 785 00200
VCID: E6C732ABA8F7
Part No: 4E0 910 853
Component: Heckdeckel P14H06 0070
Part No: 4E0 907 719
Component: Neigungssensor H01 0020
1 Fault Found:
01134 - Alarm Horn (H12)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 3
Fault Frequency: 254
Reset counter: 122
Mileage: 0 km
Time Indication: 0
Freeze Frame:
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
-------------------------------------------------------------------------------
Address 47: Sound System Labels: 4E0-910-223.lbl
Part No SW: 4E0 910 223 P HW: 4E0 035 223 A
Component: DSP-Amp.-High H12 0460
Revision: PROD_01O Serial number: 00000000103509
Coding: 0000027
Shop #: WSC 02313 785 00200
VCID: 2A5F069BFC6F
1 Fault Found:
02084 - Component Protection
005 - No or Incorrect Basic Setting / Adaptation
Freeze Frame:
Fault Status: 01100101
Fault Priority: 6
Fault Frequency: 1
Reset counter: 107
Mileage: 122486 km
Time Indication: 0
Date: 2012.11.15
Time: 15:17:28
-------------------------------------------------------------------------------
Address 4F: Centr. Electr. II Labels: None
Part No SW: 4E0 910 280 HW: 4E0 907 280 A
Component: ILM Beifahrer H06 0060
Revision: Serial number: 00000000008999
Coding: 0010101
Shop #: WSC 02312 785 00200
VCID: DDB51D477DA1
1 Fault Found:
02270 - No Acknowledgment from Limit-Shut Off at Display Unit Deployment
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00110100
Fault Priority: 4
Fault Frequency: 1
Reset counter: 162
Mileage: 122680 km
Time Indication: 0
Date: 2002.09.13
Time: 00:04:00
-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. Labels: None
Part No SW: 4E1 910 802 HW: 4E2 959 801
Component: Türsteuer.BF BRM004 0080
Coding: 0028454
Shop #: WSC 02311 785 00200
VCID: DEB71A4B70A7
No fault code found.
-------------------------------------------------------------------------------
Address 53: Parking Brake Labels: 4E0-910-801.lbl
Part No SW: 4E0 910 801 A HW: 4E0 907 801
Component: EPB AV1C1010 H01 1010
Revision: AV1C1010
Coding: 0000531
Shop #: WSC 00654 210 60455
VCID: 1D35DD47BD21
1 Fault Found:
02596 - Rear Brake Pads Worn
008 - Implausible Signal
Freeze Frame:
Fault Status: 01111000
Fault Priority: 6
Fault Frequency: 2
Reset counter: 50
Mileage: 120936 km
Time Indication: 0
Date: 2012.09.24
Time: 12:43:53
Freeze Frame:
Voltage: 12.42 V
Count: 61
-------------------------------------------------------------------------------
Address 55: Xenon Range Labels: None
Part No SW: 4E0 910 357 HW: 4E0 907 357
Component: Pre-AFS H01 0030
Revision: 00000001 Serial number:
Coding: 0000002
Shop #: WSC 02311 785 00200
VCID: E2CF2EBB44DF
No fault code found.
-------------------------------------------------------------------------------
Address 56: Radio Labels: 4E0-910-541.lbl
Part No SW: 4E0 910 541 Q HW: 4E0 035 541
Component: TUNER EU/US/RDW H41 0620
Revision: 00000000 Serial number: 304BM037517297
Coding: 0000001
Shop #: WSC 02313 785 00200
VCID: 2E570A8BC087
No fault code found.
-------------------------------------------------------------------------------
Address 57: TV Tuner Labels: 4E0-910-146.lbl
Part No SW: 4E0 910 146 G HW: 4E0 919 146
Component: TV analog TUNER H11 0300
Coding: 0001003
Shop #: WSC 02313 785 00200
VCID: 2545F5A79571
No Faults Found
or DTCs not supported by controller
or a communication error occurred
-------------------------------------------------------------------------------
Address 61: Battery Regul. Labels: 4E0-910-181.lbl
Part No SW: 4E0 910 181 HW: 4E0 915 181
Component: ENERGIEMANAGER H02 0160
Revision: 00000000 Serial number: 00000000001122
Shop #: WSC 00000 000 00000
VCID: DDB51D477DA1
Part No: 600 402 083 1
Component: von VA0 6004380023
Coding: 363030343032303833312056413036303034333830303233
Shop #: WSC 00586 210 60951
1 Fault Found:
00532 - Supply Voltage B+
002 - Lower Limit Exceeded - Intermittent
Freeze Frame:
Fault Status: 00100010
Fault Priority: 1
Fault Frequency: 2
Reset counter: 40
Mileage: 0 km
Time Indication: 0
Date: 2000.01.01
Time: 00:03:03
-------------------------------------------------------------------------------
Address 62: Door, Rear Left Labels: 4E0-910-802.lbl
Part No SW: 4E0 910 802 HW: 4E0 959 801 A
Component: Türsteuer.HL BRM004 0080
Coding: 0028454
Shop #: WSC 02311 785 00200
VCID: DDB51D477DA1
1 Fault Found:
02124 - Exterior Door Handle Switch
008 - Implausible Signal
Freeze Frame:
Fault Status: 01101000
Fault Priority: 3
Fault Frequency: 1
Reset counter: 122
Mileage: 122672 km
Time Indication: 0
Date: 2002.09.13
Time: 00:31:60
-------------------------------------------------------------------------------
Address 65: Tire Pressure Labels: 4E0-910-273.lbl
Part No SW: 4E0 910 273 HW: 4E0 907 273
Component: Reifendruck 2 H01 0190
Coding: 0212127
Shop #: WSC 02313 785 00200
VCID: DFC9274F77AD
No fault code found.
-------------------------------------------------------------------------------
Address 67: Voice Control Labels: 4E0-910-75x-67.lbl
Part No SW: 4E0 910 753 G HW: 4E0 035 753
Component: SDS 3502 UK H42 0380
Revision: 00000000 Serial number: 00000212050019
Shop #: WSC 12336 024 394758
VCID: 295DF997F969
No fault code found.
-------------------------------------------------------------------------------
Address 72: Door, Rear Right Labels: 4E0-910-802.lbl
Part No SW: 4E0 910 802 HW: 4E0 959 802 A
Component: Türsteuer.HR BRM004 0080
Coding: 0028454
Shop #: WSC 02311 785 00200
VCID: DDB51D477DA1
No fault code found.
-------------------------------------------------------------------------------
Address 76: Park Assist Labels: 4E0-910-283.lbl
Part No SW: 4E0 910 283 HW: 4E0 919 283 A
Component: Parkhilfe 8-Kan H07 0030
Coding: 0001008
Shop #: WSC 02313 785 00200
VCID: E0CB24B34AD3
No fault code found.
-------------------------------------------------------------------------------
Address 77: Telephone Labels: 4E0-910-333.lbl
Part No SW: 4E0 910 333 F HW: 4E0 862 333 B
Component: TELEFONMODUL EU 0770
Revision: 00000006 Serial number: T2AUD31011HDWB
Coding: 0000004
Shop #: WSC 00000 000 00000
VCID: 224FEEBB845F
No fault code found.
End ---------------------------------------------------------------------
This is scan for optical bus diagnostic:
Control Module Part Number: 4E0 910 468
Component and/or Version: Gateway H06 0040
Optical Bus Diagnostic : Standard
Controller Electrical Optical
19-CAN Gateway OK OK
07-Control Head ERROR ERROR
1E-Media Player 2 OK OK
77-Telephone OK OK
47-Sound System OK OK
67-Voice Control OK OK
56-Radio OK OK
57-TV Tuner OK OK
37-Navigation OK OK
Part No SW: 4E0 910 560 E HW: 4E0 907 560
Component: 4.2L V8/5V G 0040
Revision: 00000000 Serial number: AUX3Z0C0308622
Coding: 0011773
Shop #: WSC 00652 652 80630
VCID: 2341EBBF9B45
6 Faults Found:
17981 - Left Engine Mount Solenoid Valve (N144): Open Circuit
P1573 - 004 - No Signal/Communication
16420 - Oxygen (Lambda) Sensor B1 S2: Heating Circuit: Malfunction / Open Circuit
P0036 - 004 - No Signal/Communication - MIL ON
17983 - Right Engine Mount Solenoid Valve (N145): Short to Plus
P1575 - 001 - Upper Limit Exceeded
17522 - Oxygen (Lambda) Sensor; B1 S2: Internal Resistance too High
P1114 - 004 - No Signal/Communication - MIL ON
18282 - Valve for Torque Support Mount: Short to Plus
P1874 - 001 - Upper Limit Exceeded
18010 - Power Supply Terminal 30: Voltage too Low
P1602 - 002 - Lower Limit Exceeded - Intermittent
Readiness: 0110 1101
-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 09E-927-156.lbl
Part No SW: 4E0 910 156 HW: 09E 927 156
Component: AG6 09E 4,2L5V RdW 0080
Coding: 0000001
Shop #: WSC 00000 000 00000
VCID: DFC9274F77AD
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes Labels: 4E0-910-517.lbl
Part No SW: 4E0 910 517 A HW: 4E0 614 517 E
Component: ESP 5.7 allrad H29 0420
Coding: 0008597
Shop #: WSC 02313 000 00000
VCID: 214DE1B78159
1 Fault Found:
01826 - Sensor for Steering Angle (G85); Supply Voltage Terminal 30
000 - - - Intermittent
-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. Labels: 4E0-910-131.lbl
Part No SW: 4E0 910 131 HW: 4E0 909 131 K
Component: FBS AUDID3 H10 0190
Revision: 01904910 Serial number: AUX3Z0C0308622
Coding: 0411648
Shop #: WSC 00586 210 00680
VCID: D8BB0C531283
Part No: XXXXXXXXXXX
Component: ELV XXXX
1 Fault Found:
00956 - Key 2
002 - Lower Limit Exceeded - Intermittent
Freeze Frame:
Fault Status: 00100010
Fault Priority: 4
Fault Frequency: 1
Reset counter: 162
Mileage: 122672 km
Time Indication: 0
Date: 2002.09.13
Time: 00:33:46
-------------------------------------------------------------------------------
Address 06: Seat Mem. Pass Labels: None
Part No SW: 4E0 910 760 C HW: 4E0 959 760
Component: Sitzmemory BFS H06 0030
Revision: 00000000 Serial number: 5DS 008 795-03
Coding: 4063232
Shop #: WSC 02313 785 00200
VCID: 2341EBBF9B45
No fault code found.
-------------------------------------------------------------------------------
Address 07: Control Head
Cannot be reached
-------------------------------------------------------------------------------
Address 08: Auto HVAC Labels: None
Part No SW: 4E0 910 043 HW: 4E0 820 043 A
Component: KLIMAAUTOMAT 015 0190
Revision: 00000013 Serial number: 00000000010616
Coding: 0348241
Shop #: WSC 02311 785 00200
VCID: DABF165B6C8F
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. Labels: None
VCID: 55A585678591
No Faults Found
or DTCs not supported by controller
or a communication error occurred
-------------------------------------------------------------------------------
Address 15: Airbags Labels: 4E0-910-655-84.lbl
Part No SW: 4E0 910 655 HW: 4E0 959 655
Component: Airbag 8.4E+ H08 0840
Coding: 0431707
Shop #: WSC 02313 785 00200
VCID: E3C12BBF5BC5
No fault code found.
-------------------------------------------------------------------------------
Address 16: Steering wheel Labels: 4E0-910-549.lbl
Part No SW: 4E0 910 549 HW: 4E0 953 549
Component: Lenksäulenmodul H08 0020
Coding: 0112141
Shop #: WSC 02311 785 00200
VCID: E5C535A755F1
Part No: XXXXXXXXXXX
Component: Lenkradmodul H02 0050
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments Labels: 4E0-910-xxx-17.lbl
Part No SW: 4E0 910 900 HW: 4E0 920 950 C
Component: KOMBIINSTR. VDO H40 0020
Revision: 992703 Serial number: AUDID3C1001216
Coding: 0000403
Shop #: WSC 00654 210 86418
VCID: DCB3104366BB
1 Fault Found:
00003 - Control Module
014 - Defective
Freeze Frame:
Fault Status: 00000011
Fault Priority: 6
Fault Frequency: 1
Reset counter: 108
Mileage: 233585 km
Time Indication: 0
Date: 2002.09.19
Time: 19:47:04
-------------------------------------------------------------------------------
Address 19: CAN Gateway Labels: 4E0-910-468.lbl
Part No SW: 4E0 910 468 HW: 4E0 907 468 A
Component: Gateway H06 0040
Revision: 06 Serial number: 000030312607B6
Coding: FCFE7FDD2B7504
Shop #: WSC 00000 128 00289
VCID: E5C535A755F1
No fault code found.
-------------------------------------------------------------------------------
Address 1E: Media Player 2 Labels: 4E0-910-111.lbl
Part No SW: 4E0 910 111 F HW: 4E0 035 111
Component: CD-Changer H43 0470
Revision: 00000501 Serial number: AUZ5ZBC1009521
Shop #: WSC 00000 000 00000
VCID: 1C33D043A63B
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer Labels: 4E0-910-131.lbl
Part No SW: 4E0 910 131 HW: 4E0 909 131 K
Component: FBS AUDID3 H10 0190
Revision: 01904910 Serial number: AUX3Z0C0308622
Coding: 0411648
Shop #: WSC 00586 210 00680
VCID: D8BB0C531283
Part No: XXXXXXXXXXX
Component: ELV XXXX
XXXXXXXXXXX ELV XXXX
1 Fault Found:
00956 - Key 2
002 - Lower Limit Exceeded - Intermittent
Freeze Frame:
Fault Status: 00100010
Fault Priority: 4
Fault Frequency: 1
Reset counter: 162
Mileage: 122672 km
Time Indication: 0
Date: 2002.09.13
Time: 00:33:46
-------------------------------------------------------------------------------
Address 28: HVAC, Rear Labels: None
Part No SW: 4E0 910 158 HW: 4E0 919 158 A
Component: KLIMA-STG. FOND 011 0160
Revision: 00000007 Serial number: 00000000004377
Coding: 0000000
Shop #: WSC 00000 000 00000
VCID: E1CD21B741D9
No fault code found.
-------------------------------------------------------------------------------
Address 34: Level Control Labels: 4E0-910-553.lbl
Part No SW: 4E0 910 553 C HW: 4E0 907 553 C
Component: LUFTFDR.-CDC H03 4190
Coding: 0015500
Shop #: WSC 00652 210 81339
VCID: 2341EBBF9B45
2 Faults Found:
00778 - Steering Angle Sensor (G85)
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 3
Fault Frequency: 3
Reset counter: 162
Mileage: 122680 km
Time Indication: 0
Date: 2002.09.13
Time: 00:41:10
01400 - Suspension Level Control
002 - Lower Limit Exceeded - Intermittent
Freeze Frame:
Fault Status: 00100010
Fault Priority: 2
Fault Frequency: 2
Mileage: 122680 km
Time Indication: 0
Date: 2002.09.13
Time: 00:06:17
-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr Labels: None
Part No SW: 4E0 910 760 C HW: 4E0 959 760
Component: Sitzmemory FS H06 0030
Revision: 00000000 Serial number: 5DS 008 795-03
Coding: 4063330
Shop #: WSC 00654 210 60455
VCID: 2341EBBF9B45
No fault code found.
-------------------------------------------------------------------------------
Address 37: Navigation Labels: 4E0-910-88x-37.lbl
Part No SW: 4E0 910 888 P HW: 4E0 919 887 C
Component: MNS ECE H43 1060
Revision: 00000000 Serial number: 305BK047556227
Shop #: WSC 02313 785 00200
VCID: 3B7133DF03F5
2 Faults Found:
02261 - Data Medium
014 - Defective - Intermittent
Freeze Frame:
Fault Status: 00101110
Fault Priority: 7
Fault Frequency: 4
Reset counter: 162
Mileage: 122680 km
Time Indication: 0
Date: 2002.09.13
Time: 02:49:08
Freeze Frame:
Hex Value: 0x3D81
Hex Value: 0x5852
Hex Value: 0x1900
Hex Value: 0x778E
02927 - DVD Read Error
000 - - - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 6
Fault Frequency: 2
Reset counter: 162
Mileage: 122680 km
Time Indication: 0
Date: 2002.09.13
Time: 03:51:34
Freeze Frame:
Hex Value: 0x3D81
Hex Value: 0x6100
Hex Value: 0x0401
Hex Value: 0x0000
-------------------------------------------------------------------------------
Address 38: Roof Electronics Labels: 4E0-910-135.lbl
Part No SW: 4E0 910 135 A HW: 4E0 907 135 A
Component: Dachknoten D3 H01 0070
Serial number: 00000302200008
Coding: 0036500
Shop #: WSC 02313 785 00200
VCID: 1D35DD47BD21
No fault code found.
-------------------------------------------------------------------------------
Address 42: Door Elect, Driver Labels: None
Part No SW: 4E1 910 802 HW: 4E2 959 802
Component: Türsteuer.FS BRM004 0080
Coding: 0028454
Shop #: WSC 02311 785 00200
VCID: DEB71A4B70A7
1 Fault Found:
02110 - Window Regulator Switch
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 3
Fault Frequency: 1
Reset counter: 162
Mileage: 122672 km
Time Indication: 0
Date: 2002.09.13
Time: 00:39:12
-------------------------------------------------------------------------------
Address 46: Central Conv. Labels: 4E0-910-289.lbl
Part No SW: 4E0 910 289 HW: 4E0 907 289
Component: Komfortgeraet H02 0050
Coding: 0004857
Shop #: WSC 02311 785 00200
VCID: E6C732ABA8F7
Part No: 4E0 910 853
Component: Heckdeckel P14H06 0070
Part No: 4E0 907 719
Component: Neigungssensor H01 0020
1 Fault Found:
01134 - Alarm Horn (H12)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 3
Fault Frequency: 254
Reset counter: 122
Mileage: 0 km
Time Indication: 0
Freeze Frame:
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
Raw, Form. N/A: 000 000 000
-------------------------------------------------------------------------------
Address 47: Sound System Labels: 4E0-910-223.lbl
Part No SW: 4E0 910 223 P HW: 4E0 035 223 A
Component: DSP-Amp.-High H12 0460
Revision: PROD_01O Serial number: 00000000103509
Coding: 0000027
Shop #: WSC 02313 785 00200
VCID: 2A5F069BFC6F
1 Fault Found:
02084 - Component Protection
005 - No or Incorrect Basic Setting / Adaptation
Freeze Frame:
Fault Status: 01100101
Fault Priority: 6
Fault Frequency: 1
Reset counter: 107
Mileage: 122486 km
Time Indication: 0
Date: 2012.11.15
Time: 15:17:28
-------------------------------------------------------------------------------
Address 4F: Centr. Electr. II Labels: None
Part No SW: 4E0 910 280 HW: 4E0 907 280 A
Component: ILM Beifahrer H06 0060
Revision: Serial number: 00000000008999
Coding: 0010101
Shop #: WSC 02312 785 00200
VCID: DDB51D477DA1
1 Fault Found:
02270 - No Acknowledgment from Limit-Shut Off at Display Unit Deployment
004 - No Signal/Communication - Intermittent
Freeze Frame:
Fault Status: 00110100
Fault Priority: 4
Fault Frequency: 1
Reset counter: 162
Mileage: 122680 km
Time Indication: 0
Date: 2002.09.13
Time: 00:04:00
-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. Labels: None
Part No SW: 4E1 910 802 HW: 4E2 959 801
Component: Türsteuer.BF BRM004 0080
Coding: 0028454
Shop #: WSC 02311 785 00200
VCID: DEB71A4B70A7
No fault code found.
-------------------------------------------------------------------------------
Address 53: Parking Brake Labels: 4E0-910-801.lbl
Part No SW: 4E0 910 801 A HW: 4E0 907 801
Component: EPB AV1C1010 H01 1010
Revision: AV1C1010
Coding: 0000531
Shop #: WSC 00654 210 60455
VCID: 1D35DD47BD21
1 Fault Found:
02596 - Rear Brake Pads Worn
008 - Implausible Signal
Freeze Frame:
Fault Status: 01111000
Fault Priority: 6
Fault Frequency: 2
Reset counter: 50
Mileage: 120936 km
Time Indication: 0
Date: 2012.09.24
Time: 12:43:53
Freeze Frame:
Voltage: 12.42 V
Count: 61
-------------------------------------------------------------------------------
Address 55: Xenon Range Labels: None
Part No SW: 4E0 910 357 HW: 4E0 907 357
Component: Pre-AFS H01 0030
Revision: 00000001 Serial number:
Coding: 0000002
Shop #: WSC 02311 785 00200
VCID: E2CF2EBB44DF
No fault code found.
-------------------------------------------------------------------------------
Address 56: Radio Labels: 4E0-910-541.lbl
Part No SW: 4E0 910 541 Q HW: 4E0 035 541
Component: TUNER EU/US/RDW H41 0620
Revision: 00000000 Serial number: 304BM037517297
Coding: 0000001
Shop #: WSC 02313 785 00200
VCID: 2E570A8BC087
No fault code found.
-------------------------------------------------------------------------------
Address 57: TV Tuner Labels: 4E0-910-146.lbl
Part No SW: 4E0 910 146 G HW: 4E0 919 146
Component: TV analog TUNER H11 0300
Coding: 0001003
Shop #: WSC 02313 785 00200
VCID: 2545F5A79571
No Faults Found
or DTCs not supported by controller
or a communication error occurred
-------------------------------------------------------------------------------
Address 61: Battery Regul. Labels: 4E0-910-181.lbl
Part No SW: 4E0 910 181 HW: 4E0 915 181
Component: ENERGIEMANAGER H02 0160
Revision: 00000000 Serial number: 00000000001122
Shop #: WSC 00000 000 00000
VCID: DDB51D477DA1
Part No: 600 402 083 1
Component: von VA0 6004380023
Coding: 363030343032303833312056413036303034333830303233
Shop #: WSC 00586 210 60951
1 Fault Found:
00532 - Supply Voltage B+
002 - Lower Limit Exceeded - Intermittent
Freeze Frame:
Fault Status: 00100010
Fault Priority: 1
Fault Frequency: 2
Reset counter: 40
Mileage: 0 km
Time Indication: 0
Date: 2000.01.01
Time: 00:03:03
-------------------------------------------------------------------------------
Address 62: Door, Rear Left Labels: 4E0-910-802.lbl
Part No SW: 4E0 910 802 HW: 4E0 959 801 A
Component: Türsteuer.HL BRM004 0080
Coding: 0028454
Shop #: WSC 02311 785 00200
VCID: DDB51D477DA1
1 Fault Found:
02124 - Exterior Door Handle Switch
008 - Implausible Signal
Freeze Frame:
Fault Status: 01101000
Fault Priority: 3
Fault Frequency: 1
Reset counter: 122
Mileage: 122672 km
Time Indication: 0
Date: 2002.09.13
Time: 00:31:60
-------------------------------------------------------------------------------
Address 65: Tire Pressure Labels: 4E0-910-273.lbl
Part No SW: 4E0 910 273 HW: 4E0 907 273
Component: Reifendruck 2 H01 0190
Coding: 0212127
Shop #: WSC 02313 785 00200
VCID: DFC9274F77AD
No fault code found.
-------------------------------------------------------------------------------
Address 67: Voice Control Labels: 4E0-910-75x-67.lbl
Part No SW: 4E0 910 753 G HW: 4E0 035 753
Component: SDS 3502 UK H42 0380
Revision: 00000000 Serial number: 00000212050019
Shop #: WSC 12336 024 394758
VCID: 295DF997F969
No fault code found.
-------------------------------------------------------------------------------
Address 72: Door, Rear Right Labels: 4E0-910-802.lbl
Part No SW: 4E0 910 802 HW: 4E0 959 802 A
Component: Türsteuer.HR BRM004 0080
Coding: 0028454
Shop #: WSC 02311 785 00200
VCID: DDB51D477DA1
No fault code found.
-------------------------------------------------------------------------------
Address 76: Park Assist Labels: 4E0-910-283.lbl
Part No SW: 4E0 910 283 HW: 4E0 919 283 A
Component: Parkhilfe 8-Kan H07 0030
Coding: 0001008
Shop #: WSC 02313 785 00200
VCID: E0CB24B34AD3
No fault code found.
-------------------------------------------------------------------------------
Address 77: Telephone Labels: 4E0-910-333.lbl
Part No SW: 4E0 910 333 F HW: 4E0 862 333 B
Component: TELEFONMODUL EU 0770
Revision: 00000006 Serial number: T2AUD31011HDWB
Coding: 0000004
Shop #: WSC 00000 000 00000
VCID: 224FEEBB845F
No fault code found.
End ---------------------------------------------------------------------
This is scan for optical bus diagnostic:
Control Module Part Number: 4E0 910 468
Component and/or Version: Gateway H06 0040
Optical Bus Diagnostic : Standard
Controller Electrical Optical
19-CAN Gateway OK OK
07-Control Head ERROR ERROR
1E-Media Player 2 OK OK
77-Telephone OK OK
47-Sound System OK OK
67-Voice Control OK OK
56-Radio OK OK
57-TV Tuner OK OK
37-Navigation OK OK
12-14-2012, 01:22 PM
#14
also for the late reply, i did not realise anyone replied, because i assumed i would of got an email notification.
just a quick question if i am needing a mmi control head ecu is this the part im needing depending on part number i get off old one,
http://www.ebay.co.uk/itm/Audi-A8-D3...item1e6c806367
just need make sure that if it is that part im needing, which is the last option after everything tried, then im ready for it lol.
just a quick question if i am needing a mmi control head ecu is this the part im needing depending on part number i get off old one,
http://www.ebay.co.uk/itm/Audi-A8-D3...item1e6c806367
just need make sure that if it is that part im needing, which is the last option after everything tried, then im ready for it lol.
12-14-2012, 02:27 PM
#15
Banned
Yes and No....
according to your scan you do have the TV tuner, so the part you have list is without the "FABS green connector" being part number 4E0 035 729 and will not work with the TV tuner, the MMI control module part number "4E0 035 729 A" has the correct FABS green connector.
Now to make sure which one you need pull the glove box and check for part # and also the green plug...
Also call Carl at 8 parts from the one you listed and ask him for the [4E0 035 729 A] He sold me one just bit ago for $190 GBP or $306.57 USD, I have purchased parts from Carl several times and he is very helpful and willing to deal.
so see these below
http://www.ebay.com/itm/03-AUDI-A8-M...item2ec173c360
not sure on this one as it has the right part number but software is for newer vehicle, although you can load proper SW but why ?
http://www.ebay.com/itm/08-09-10-11-...02c64f&vxp=mtr
Now to make sure which one you need pull the glove box and check for part # and also the green plug...
Also call Carl at 8 parts from the one you listed and ask him for the [4E0 035 729 A] He sold me one just bit ago for $190 GBP or $306.57 USD, I have purchased parts from Carl several times and he is very helpful and willing to deal.
so see these below
http://www.ebay.com/itm/03-AUDI-A8-M...item2ec173c360
not sure on this one as it has the right part number but software is for newer vehicle, although you can load proper SW but why ?
http://www.ebay.com/itm/08-09-10-11-...02c64f&vxp=mtr
Last edited by JohnnyJ A6Q; 12-14-2012 at 02:35 PM. Reason: pictures
12-14-2012, 03:02 PM
#16
Banned
Is the
unit completely dead now or are you still getting some use, meaning are you saying that the CD, nav, radio plays with sound, but no mmi screen up/down or and no picture, just so we are clear, as your 07 MMI CH scan shows cannot be reached
"Address 07: Control Head Cannot be reached"
Also your 19 "CAN" is good,
Address 19: CAN Gateway Labels: 4E0-910-468.lbl
Part No SW: 4E0 910 468 HW: 4E0 907 468 A
Component: Gateway H06 0040
Revision: 06 Serial number: 000030312607B6
Coding: FCFE7FDD2B7504
Shop #: WSC 00000 128 00289
VCID: E5C535A755F1
No fault code found.
Also your 1E CD Changer is good,
But your 37 NAV has a problem, are you using a factory NAV disc ?
02261 - Data Medium
014 - Defective - Intermittent
02927 - DVD Read Error
Address 37: Navigation Labels: 4E0-910-88x-37.lbl
Part No SW: 4E0 910 888 P HW: 4E0 919 887 C
Component: MNS ECE H43 1060
Revision: 00000000 Serial number: 305BK047556227
Shop #: WSC 02313 785 00200
VCID: 3B7133DF03F5
2 Faults Found:
02261 - Data Medium
014 - Defective - Intermittent
Freeze Frame:
Fault Status: 00101110
Fault Priority: 7
Fault Frequency: 4
Reset counter: 162
Mileage: 122680 km
Time Indication: 0
Date: 2002.09.13
Time: 02:49:08
Freeze Frame:
Hex Value: 0x3D81
Hex Value: 0x5852
Hex Value: 0x1900
Hex Value: 0x778E
02927 - DVD Read Error
000 - - - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 6
Fault Frequency: 2
Reset counter: 162
Mileage: 122680 km
Time Indication: 0
Date: 2002.09.13
Time: 03:51:34
Now your 47 Sound System shows "Component Protection" and I see different dates, SO it looks like you did not clear all codes or you did and the time and date in your cluster is wrong, please let me know which it is.
Address 47: Sound System Labels: 4E0-910-223.lbl
Part No SW: 4E0 910 223 P HW: 4E0 035 223 A
Component: DSP-Amp.-High H12 0460
Revision: PROD_01O Serial number: 00000000103509
Coding: 0000027
Shop #: WSC 02313 785 00200
VCID: 2A5F069BFC6F
1 Fault Found:
02084 - Component Protection
005 - No or Incorrect Basic Setting / Adaptation
Freeze Frame:
Fault Status: 01100101
Fault Priority: 6
Fault Frequency: 1
Reset counter: 107
Mileage: 122486 km
Time Indication: 0
Date: 2012.11.15
Time: 15:17:28
"Address 07: Control Head Cannot be reached"
Also your 19 "CAN" is good,
Address 19: CAN Gateway Labels: 4E0-910-468.lbl
Part No SW: 4E0 910 468 HW: 4E0 907 468 A
Component: Gateway H06 0040
Revision: 06 Serial number: 000030312607B6
Coding: FCFE7FDD2B7504
Shop #: WSC 00000 128 00289
VCID: E5C535A755F1
No fault code found.
Also your 1E CD Changer is good,
But your 37 NAV has a problem, are you using a factory NAV disc ?
02261 - Data Medium
014 - Defective - Intermittent
02927 - DVD Read Error
Address 37: Navigation Labels: 4E0-910-88x-37.lbl
Part No SW: 4E0 910 888 P HW: 4E0 919 887 C
Component: MNS ECE H43 1060
Revision: 00000000 Serial number: 305BK047556227
Shop #: WSC 02313 785 00200
VCID: 3B7133DF03F5
2 Faults Found:
02261 - Data Medium
014 - Defective - Intermittent
Freeze Frame:
Fault Status: 00101110
Fault Priority: 7
Fault Frequency: 4
Reset counter: 162
Mileage: 122680 km
Time Indication: 0
Date: 2002.09.13
Time: 02:49:08
Freeze Frame:
Hex Value: 0x3D81
Hex Value: 0x5852
Hex Value: 0x1900
Hex Value: 0x778E
02927 - DVD Read Error
000 - - - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 6
Fault Frequency: 2
Reset counter: 162
Mileage: 122680 km
Time Indication: 0
Date: 2002.09.13
Time: 03:51:34
Now your 47 Sound System shows "Component Protection" and I see different dates, SO it looks like you did not clear all codes or you did and the time and date in your cluster is wrong, please let me know which it is.
Address 47: Sound System Labels: 4E0-910-223.lbl
Part No SW: 4E0 910 223 P HW: 4E0 035 223 A
Component: DSP-Amp.-High H12 0460
Revision: PROD_01O Serial number: 00000000103509
Coding: 0000027
Shop #: WSC 02313 785 00200
VCID: 2A5F069BFC6F
1 Fault Found:
02084 - Component Protection
005 - No or Incorrect Basic Setting / Adaptation
Freeze Frame:
Fault Status: 01100101
Fault Priority: 6
Fault Frequency: 1
Reset counter: 107
Mileage: 122486 km
Time Indication: 0
Date: 2012.11.15
Time: 15:17:28
12-14-2012, 03:21 PM
#17
12-14-2012, 03:30 PM
#18
basically i have to 3 button reset for it to work but it takes a few times. everything works it is just very tempremental with regards to the mmi actually powering up. sometimes when it does power up the cd player will work and play sound, but screen frezzes and cant use control pad, other times it will work fine but still needing to reset it. so basically works but always needs a 3button reset and this will need doing 3 times atleast before it works. baffling i know.
no nav cd was purchased off ebay and its not factory its a copy i think, newer maps 2012 version, i have used it and worked fine but i guess not anymore as the nav is getting stuck now after the battery problem.
the date on calender is wrong most likely because i did clear codes, the scan i posted half of them problems wernt there before the battery problem. the component protection, does that mean its like a shut down, because there is still sound comming through..
no nav cd was purchased off ebay and its not factory its a copy i think, newer maps 2012 version, i have used it and worked fine but i guess not anymore as the nav is getting stuck now after the battery problem.
the date on calender is wrong most likely because i did clear codes, the scan i posted half of them problems wernt there before the battery problem. the component protection, does that mean its like a shut down, because there is still sound comming through..
12-14-2012, 03:32 PM
#19
also with regards to the update software SW version i have purchased the 3cd from ebay vag guy, havnt used it as yet was planning to but not got round to it been busy. so updateing isnt a problem if needed with mmi ecu.
12-15-2012, 11:54 AM
#20
hi johhnyj just a quick update, i removed the glove box and yes its the ecu with part number 'A' and green connector.
evrything seemed fine with the connections to the ecu and cd player.
evrything seemed fine with the connections to the ecu and cd player.
