Soft close door install
#1
AudiWorld Member
Thread Starter
![Default](https://www.audiworld.com/forums/images/icons/icon1.gif)
I'm posting this to help anyone who may need it, or want to do a soft close door replacement. I searched but could not find any pictures. I found it easier to work on something if I have some idea and some picture on what I'm doing.It may help someone in the future ( with pictures). When I got my car all the soft close door worked except the front passenger side. I know some people don't care or like them but I do. I give this job a 3 to 4 on the difficulty meter. This will work on the front doors, the rear will be a little bit different. I started by having the window all the way up. Then disconnect the battery. I don't think you have to but with this many modules in the car I find it give me peace of mind to not have any power going to them when removing window motor regulators etc..
Anyone please feel free to add any info you like. This is purely to help anyone do this install that my want too instead of paying someone to do it. I ended up buying a used one, but to be honest they are pretty cheap. Passenger side Part number 4E1837016C.
![Name: 0930131656.jpg
Views: 6774
Size: 130.5 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/83996d1501531836-soft-close-door-install-0930131656.jpg)
Window up remove door trim. Start on the inner side.
![Name: 0930131657.jpg
Views: 7036
Size: 46.9 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/83997d1501531836-soft-close-door-install-0930131657.jpg)
This is the back of the door trim. It hooks into the door that's why you start prying it from the inner side. I used some tape around the edges.
![Name: 0930131834.jpg
Views: 6717
Size: 32.0 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/83998d1501531836-soft-close-door-install-0930131834.jpg)
Behind the door trim is a 8mm bolt. Only 2 holds the door panel on.
![Name: 0930131703.jpg
Views: 6753
Size: 44.5 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/83999d1501531836-soft-close-door-install-0930131703.jpg)
One deep inside the door pocket. Sorry hard to see it.
Back of door panel. Just pull on the edges but take care!!
![Name: 0930131711.jpg
Views: 6727
Size: 62.4 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84001d1501531836-soft-close-door-install-0930131711.jpg)

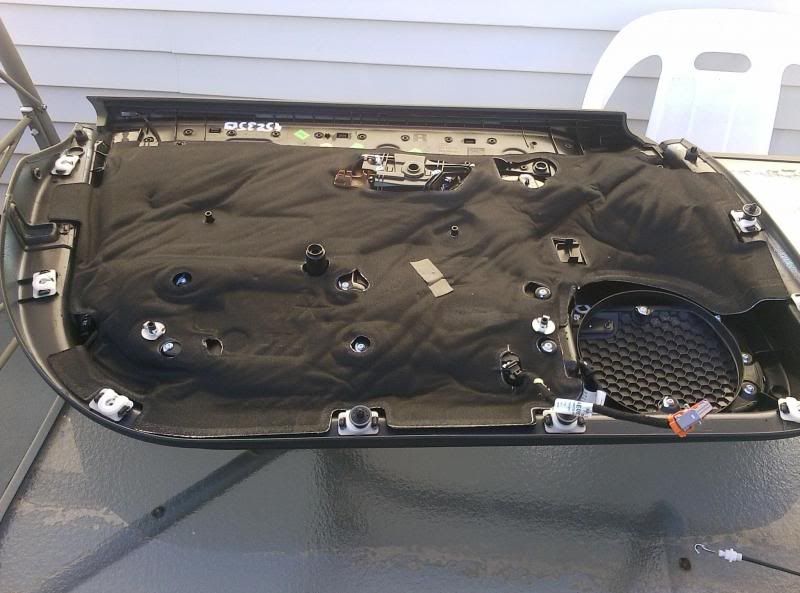

Tabs that hold the door panel on Pull them out release them push them back in lock them.
![Name: 0930131803.jpg
Views: 6648
Size: 20.3 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84002d1501531836-soft-close-door-install-0930131803.jpg)
This is what you will see after removing the door panel. The orange rod is hooked to the door handle. Needs to be removed. also the window motor as a plug from the door panel. Remove it.
![Name: 0930131712.jpg
Views: 8822
Size: 62.2 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84003d1501531836-soft-close-door-install-0930131712.jpg)
Now remove the window motor, soft close door motor with all plugs.(this also could be what is bad and not make the door work)Speaker unplug don't remove. Also the 2 rubber grommets.
![Name: 0930131721.jpg
Views: 8005
Size: 70.3 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84004d1501531836-soft-close-door-install-0930131721.jpg)
4 parts removed
![Name: 0930131725.jpg
Views: 6778
Size: 140.2 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84005d1501531836-soft-close-door-install-0930131725.jpg)
![Name: 0930131724-5.jpg
Views: 6683
Size: 53.7 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84006d1501531836-soft-close-door-install-0930131724-5.jpg)
Now pull down the glass, by hand you will see two orange tabs with 10mm screws. Un-bolt them. Glass is now free, from window regulator. push back up to the top.
![Name: 0930131729a.jpg
Views: 6773
Size: 57.3 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84007d1501531836-soft-close-door-install-0930131729a.jpg)
![Name: 0930131729.jpg
Views: 6638
Size: 39.8 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84008d1501531836-soft-close-door-install-0930131729.jpg)
remove all the screw holding the aluminum panel on. This is the back of it.
![Name: 0930131732.jpg
Views: 6749
Size: 75.3 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84009d1501531836-soft-close-door-install-0930131732.jpg)
Panel removed
![Name: 0930131732b-1.jpg
Views: 6601
Size: 64.6 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84010d1501531836-soft-close-door-install-0930131732b-1.jpg)
Here she is hiding behind that cover small Torx screw, to remove.
![Name: 0930131732a.jpg
Views: 6616
Size: 49.9 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84011d1501531836-soft-close-door-install-0930131732a.jpg)
Remove the outer "Triple Square Socket"
![Name: 0930131734.jpg
Views: 6739
Size: 41.5 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84012d1501531836-soft-close-door-install-0930131734.jpg)
After removing the 2 square sockets there are 3 plugs and one rod that is connected to the door handle. Then she slides out.
Put it back in reverse. I hope this may help someone who may want to try to do it. I found it really easy and it took about a hour, with me taken pictures and all. If I had to do it again, maybe a half hour.
Anyone please feel free to add any info you like. This is purely to help anyone do this install that my want too instead of paying someone to do it. I ended up buying a used one, but to be honest they are pretty cheap. Passenger side Part number 4E1837016C.
![Name: 0930131656.jpg
Views: 6774
Size: 130.5 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/83996d1501531836-soft-close-door-install-0930131656.jpg)
Window up remove door trim. Start on the inner side.
![Name: 0930131657.jpg
Views: 7036
Size: 46.9 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/83997d1501531836-soft-close-door-install-0930131657.jpg)
This is the back of the door trim. It hooks into the door that's why you start prying it from the inner side. I used some tape around the edges.
![Name: 0930131834.jpg
Views: 6717
Size: 32.0 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/83998d1501531836-soft-close-door-install-0930131834.jpg)
Behind the door trim is a 8mm bolt. Only 2 holds the door panel on.
![Name: 0930131703.jpg
Views: 6753
Size: 44.5 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/83999d1501531836-soft-close-door-install-0930131703.jpg)
One deep inside the door pocket. Sorry hard to see it.
![Name: 0930131703a.jpg
Views: 6682
Size: 24.3 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84000d1501531836-soft-close-door-install-0930131703a.jpg)
Back of door panel. Just pull on the edges but take care!!
![Name: 0930131711.jpg
Views: 6727
Size: 62.4 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84001d1501531836-soft-close-door-install-0930131711.jpg)
Tabs that hold the door panel on Pull them out release them push them back in lock them.
![Name: 0930131803.jpg
Views: 6648
Size: 20.3 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84002d1501531836-soft-close-door-install-0930131803.jpg)
This is what you will see after removing the door panel. The orange rod is hooked to the door handle. Needs to be removed. also the window motor as a plug from the door panel. Remove it.
![Name: 0930131712.jpg
Views: 8822
Size: 62.2 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84003d1501531836-soft-close-door-install-0930131712.jpg)
Now remove the window motor, soft close door motor with all plugs.(this also could be what is bad and not make the door work)Speaker unplug don't remove. Also the 2 rubber grommets.
![Name: 0930131721.jpg
Views: 8005
Size: 70.3 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84004d1501531836-soft-close-door-install-0930131721.jpg)
4 parts removed
![Name: 0930131725.jpg
Views: 6778
Size: 140.2 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84005d1501531836-soft-close-door-install-0930131725.jpg)
![Name: 0930131724-5.jpg
Views: 6683
Size: 53.7 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84006d1501531836-soft-close-door-install-0930131724-5.jpg)
Now pull down the glass, by hand you will see two orange tabs with 10mm screws. Un-bolt them. Glass is now free, from window regulator. push back up to the top.
![Name: 0930131729a.jpg
Views: 6773
Size: 57.3 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84007d1501531836-soft-close-door-install-0930131729a.jpg)
![Name: 0930131729.jpg
Views: 6638
Size: 39.8 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84008d1501531836-soft-close-door-install-0930131729.jpg)
remove all the screw holding the aluminum panel on. This is the back of it.
![Name: 0930131732.jpg
Views: 6749
Size: 75.3 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84009d1501531836-soft-close-door-install-0930131732.jpg)
Panel removed
![Name: 0930131732b-1.jpg
Views: 6601
Size: 64.6 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84010d1501531836-soft-close-door-install-0930131732b-1.jpg)
Here she is hiding behind that cover small Torx screw, to remove.
![Name: 0930131732a.jpg
Views: 6616
Size: 49.9 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84011d1501531836-soft-close-door-install-0930131732a.jpg)
Remove the outer "Triple Square Socket"
![Name: 0930131734.jpg
Views: 6739
Size: 41.5 KB](https://www.audiworld.com/forums/attachments/a8-s8-d3-platform-discussion-60/84012d1501531836-soft-close-door-install-0930131734.jpg)
After removing the 2 square sockets there are 3 plugs and one rod that is connected to the door handle. Then she slides out.
Put it back in reverse. I hope this may help someone who may want to try to do it. I found it really easy and it took about a hour, with me taken pictures and all. If I had to do it again, maybe a half hour.
#2
AudiWorld Super User
![](https://www.audiworld.com/forums/images/ranks/guru2.jpg)
![Default](https://www.audiworld.com/forums/images/icons/icon1.gif)
Great job. I have had trim panel off before, but never the inner metal panel. Now I know how to!
I have had trouble with those trim pins that hold the panel on. Sometimes they freeze up, so I just bought a bunch of them for next few panels I pull. I just had drivers trim panel thoroughly apart to replace various switches and the plastic piece that runs between the window switch panel and the mirror switch. Everything worked, but at 100K miles and 7 years, I figured it was time for a cosmetic makeover since the upholstery and body otherwise are still in great shape.
I'm w/ you by the way; I like the soft touch working --and all the other stuff the car came with. I have lost two over the years, one rear under 4/50 and the other (passenger front) under CPO. Hence never had to pull it apart.
I have had trouble with those trim pins that hold the panel on. Sometimes they freeze up, so I just bought a bunch of them for next few panels I pull. I just had drivers trim panel thoroughly apart to replace various switches and the plastic piece that runs between the window switch panel and the mirror switch. Everything worked, but at 100K miles and 7 years, I figured it was time for a cosmetic makeover since the upholstery and body otherwise are still in great shape.
I'm w/ you by the way; I like the soft touch working --and all the other stuff the car came with. I have lost two over the years, one rear under 4/50 and the other (passenger front) under CPO. Hence never had to pull it apart.
#3
AudiWorld Member
Thread Starter
![Default](https://www.audiworld.com/forums/images/icons/icon1.gif)
MP4.2+6.0
Thanks for the compliment. I'm Like you I like all the stuff to working the car comes with. Not sure what the shop time would be to do this but it's nice haveing to do it yourself and not pay anyone.
Thanks for the compliment. I'm Like you I like all the stuff to working the car comes with. Not sure what the shop time would be to do this but it's nice haveing to do it yourself and not pay anyone.
#4
AudiWorld Super User
![Default](https://www.audiworld.com/forums/images/icons/icon1.gif)
Viper04,
Thanks for the pictures - No wonder dealer charges $400 just for the labor.
Good job,
Last night we took the Q7 to dinner - my kids forgot and closed the doors lightly, they went half way and stuck - "oh man it doesn't close by itself like the A8, can you put it in here dad?".
Louis
Thanks for the pictures - No wonder dealer charges $400 just for the labor.
Good job,
Last night we took the Q7 to dinner - my kids forgot and closed the doors lightly, they went half way and stuck - "oh man it doesn't close by itself like the A8, can you put it in here dad?".
Louis
Last edited by ltooz_a6_a8_q7; 10-05-2013 at 08:12 AM.
The following users liked this post:
Chimney (03-04-2021)
#5
